OCR bounding box 좌표값으로 정렬하기 (ocr bbox sorting by coordinate) left to right / top to down

import os
import numpy as np
from IPython.display import Image

def get_files(path):
    files = os.listdir(path)
    img_path =[]
    gt_path = []
    for file in files:
        if file.split(".")[-1] in ["jpg"]:
            img_path.append(path+"/"+file)
            gt_path.append(path+"/"+file.split(".")[0]+".txt")

    return img_path , gt_path

def is_on_same_line(box_a, box_b, min_y_overlap_ratio=0.8):
    """Check if two boxes are on the same line by their y-axis coordinates.
    Two boxes are on the same line if they overlap vertically, and the length
    of the overlapping line segment is greater than min_y_overlap_ratio * the
    height of either of the boxes.
    Args:
        box_a (list), box_b (list): Two bounding boxes to be checked
        min_y_overlap_ratio (float): The minimum vertical overlapping ratio
                                    allowed for boxes in the same line
    Returns:
        The bool flag indicating if they are on the same line
    """
    a_y_min = np.min(box_a[1::2])
    b_y_min = np.min(box_b[1::2])
    a_y_max = np.max(box_a[1::2])
    b_y_max = np.max(box_b[1::2])

    # Make sure that box a is always the box above another
    if a_y_min > b_y_min:
        a_y_min, b_y_min = b_y_min, a_y_min
        a_y_max, b_y_max = b_y_max, a_y_max

    if b_y_min <= a_y_max:
        if min_y_overlap_ratio is not None:
            sorted_y = sorted([b_y_min, b_y_max, a_y_max])
            overlap = sorted_y[1] - sorted_y[0]
            min_a_overlap = (a_y_max - a_y_min) * min_y_overlap_ratio
            min_b_overlap = (b_y_max - b_y_min) * min_y_overlap_ratio
            return overlap >= min_a_overlap or \
                overlap >= min_b_overlap
        else:
            return True
    return False

def main():
    img_path , gt_path = get_files("./sort_sample")

    #for gt in gt_path:
    file = open(gt_path[2], 'r', encoding="utf-8")
    lines = file.readlines()
    sort_box_mid = []

    for line in lines:
        polygon = line.split("\t")[:8]
        label = line.split("\t")[8]
        ner = line.split("\t")[-1].rstrip("\n")

        x1, y1, x3, y3 = int(polygon[0]), int(polygon[1]), int(polygon[4]), int(polygon[5])
        xm, ym = ((x3+x1)/2), ((y3+y1)/2)
        sort_box_mid.append([x1, y1, x3, y3, xm, ym, label, ner])

    x_sorted_boxes = sorted(sort_box_mid, key=lambda x: np.min(x[4]))

    x_sorted_boxes
    dict_val = {}
    for index, val in enumerate(x_sorted_boxes):
        dict_val[index] = val
    print(dict_val)


    skip_idxs = set()
    min_y_overlap_ratio = 0.8
    lines = {}
    lines_label = []
    i = 0
    # locate lines of boxes starting from the leftmost one
    # x_sorted_boxes : x좌표 (좌 -> 우)
    for i in range(len(x_sorted_boxes)):#한 단어 씩 검토
        if i in skip_idxs:
            continue
        # the rightmost box in the current line
        rightmost_box_idx = i
        line = [rightmost_box_idx]
        line_key = rightmost_box_idx
        label = [x_sorted_boxes[rightmost_box_idx][6]]
        for j in range(i + 1, len(x_sorted_boxes)):
            if j in skip_idxs:
                continue
            if is_on_same_line(x_sorted_boxes[rightmost_box_idx][0:4], x_sorted_boxes[j][0:4], min_y_overlap_ratio):
                line.append(j)
                skip_idxs.add(j)
                rightmost_box_idx = j
                label.append(x_sorted_boxes[j][6])

        lines_label.append(label)
        # ########TEST
        lines[line_key]=line

    # 라인단위 첫 글자들만 뽑아서 y위치에 맞춰서 sorting 진행
    first = []
    for key_idx in lines.keys():
        first.append((key_idx, x_sorted_boxes[key_idx]))# 각 라인의 제일 왼쪽 글자의 my 값

    y_sorted_boxes = sorted(first, key=lambda first: first[1][5])
    y_sorted_boxes = [y[0] for y in y_sorted_boxes]

    new = []
    for y in y_sorted_boxes:
        vlist = lines.get(y)
        new.append(vlist)

    sorted_result = []
    for line in new:
        for val in line:
            sorted_result.append(dict_val[val])

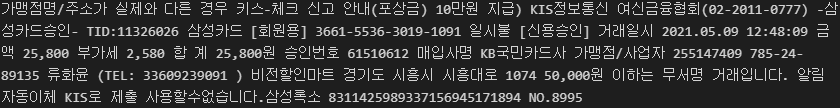

    print(' '.join(x[6] for x in sorted_result))
