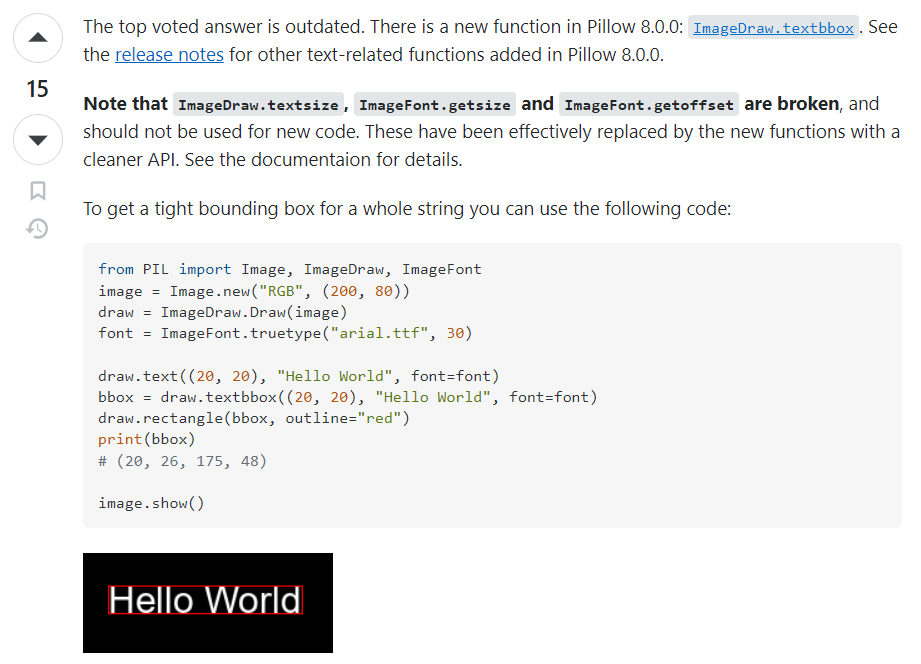

How to get the font pixel height using PIL's ImageFont class?
I am using PIL' ImageFont module to load fonts to generate text images. I want the text to tightly bound to the edge, however, when using the ImageFont to get the font height, It seems that it incl...
stackoverflow.com
Font Loading 후, font와 관련된 요소 추출 시, 참고
+) PIL이 update 되면서 text 자체의 box를 Fit하게 가져오는 코드가 생김
text_bbox = draw.textbbox((0, 0), text, font=font)
draw.rectangle(text_bbox, outline=(0, 150, 150), width=2)#CYAN color

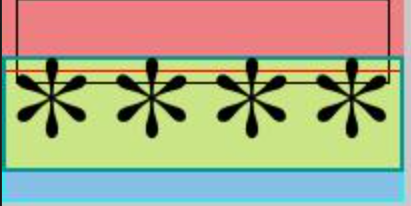

+) 특수문자는 예외..

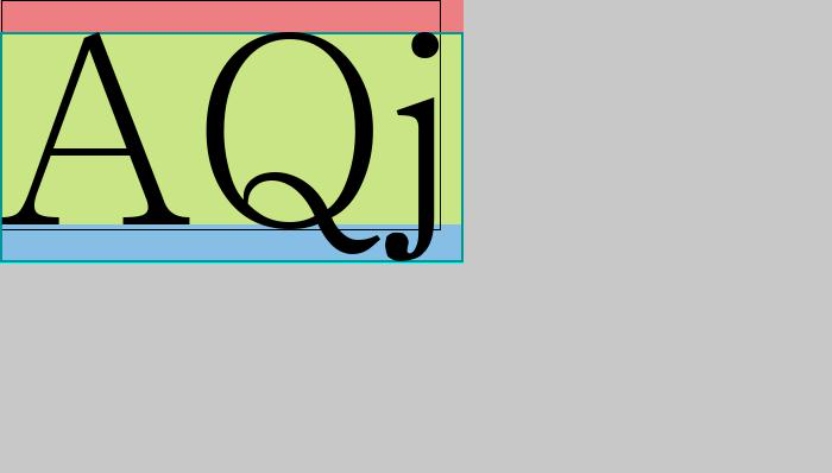

def font_inner_bbox():
im = Image.new('RGB', (700, 400), (200, 200, 200))
text = 'AQj'
font = ImageFont.truetype('./resources/font/handwriting_font/FONT.ttf', size=220)

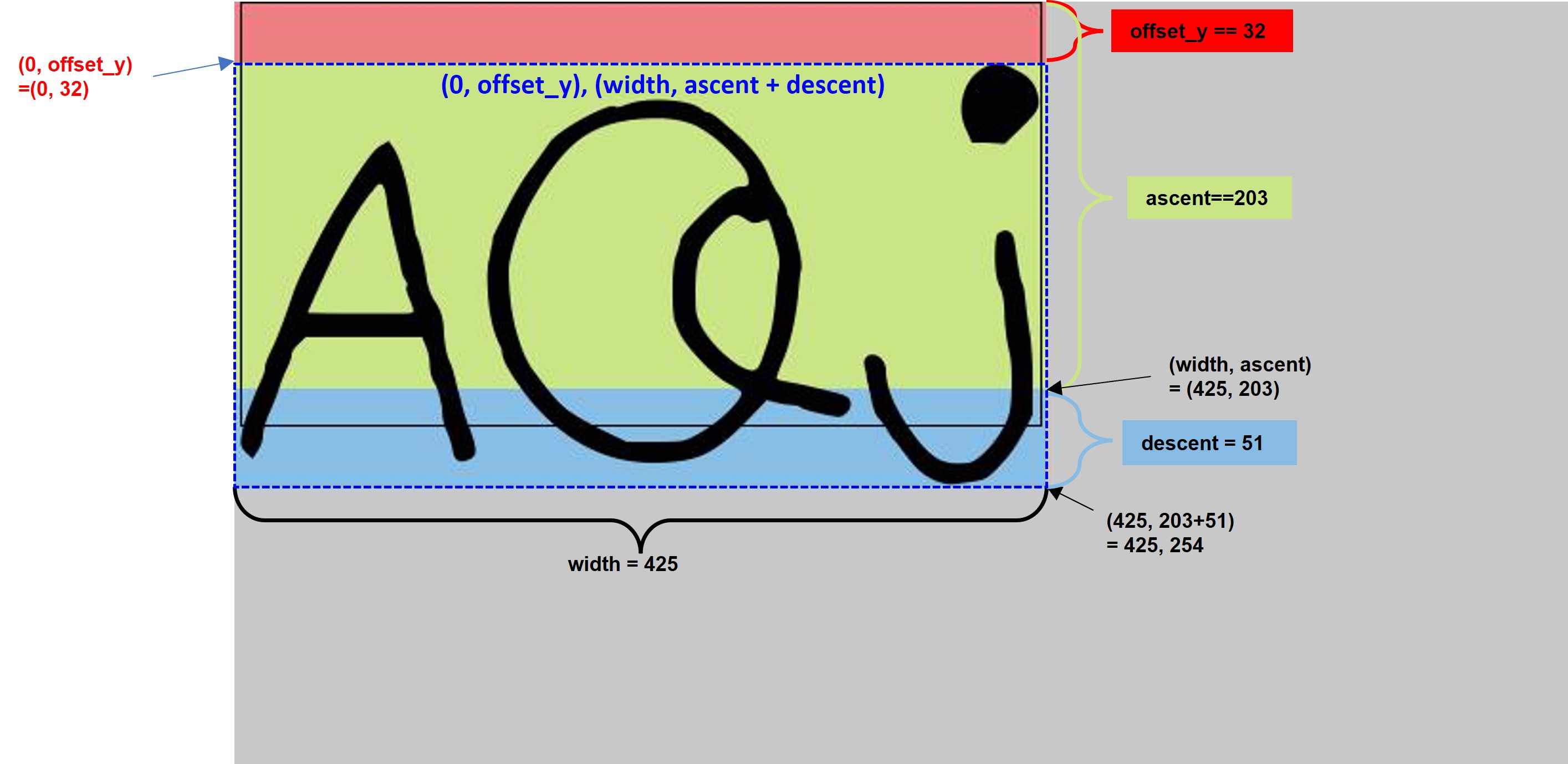

ascent, descent = font.getmetrics()
print(ascent, descent)
# font
# ascent (the distance from the baseline to the highest outline point)
# descent (the distance from the baseline to the lowest outline point, a negative value)
(width, height), (offset_x, offset_y) = font.font.getsize(text)
draw = ImageDraw.Draw(im)
draw.rectangle([(0, 0), (width, offset_y)], fill=(237, 127, 130)) # Red
draw.rectangle([(0, offset_y), (width, ascent)], fill=(202, 229, 134)) # Green
draw.rectangle([(0, ascent), (width, ascent + descent)], fill=(134, 190, 229)) # Blue
draw.rectangle(font.getmask(text).getbbox(), outline=(0, 0, 0)) # Black
draw.rectangle([(0, offset_y), (width, ascent + descent)], outline=(0, 255, 255)) # SKY
text_bbox = draw.textbbox((0, 0), text, font=font)
draw.rectangle(text_bbox, outline=(0, 150, 150), width=2)#CYAN color
draw.text((0, 0), text, font=font, fill=(0, 0, 0))
im.save('result.jpg')
print(width, height)
print(offset_x, offset_y)
print('Red height', offset_y)
print('Green height', ascent - offset_y)
print('Blue height', descent)
print('Black', font.getmask(text).getbbox())'머신러닝 > Computer Vision' 카테고리의 다른 글
